Pigtail Socket Assemblies

Description

Product ID: Pigtail Socket & Harnesses

Specifications:

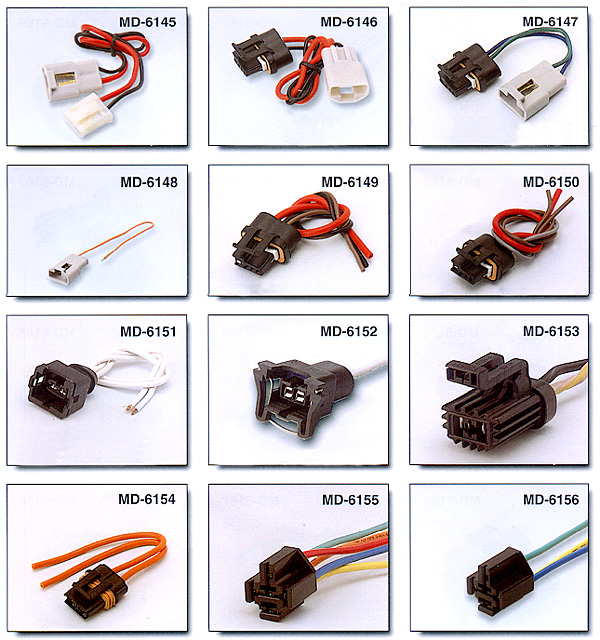

  • MD-6145:
    • GM harness extender.
    • For alternator with internal voltage.
    • Regulator 1971 up.
    • To repair alternator pigtail, remove female end of harness.
    • 12″ wire lead.
    • Replaces: 6294493, fits Delco 7731
  • MD-6146:
    • Alternator adapter harness.
    • Harness allows new style (CS series) GM alternators to be used in older vehicle applications (SI series).
    • Replaces: GM 12102921; Delco 8078. Use on vehicles without alternator warning light or if vehicle has gauge.
    • Two color coded wires and plastic mating plugs already assimbled ready to plug in. See chart below.
    • For GM products. Replaces: GM 90196375; Delco D-856A
    • GM products—1992-88.
  • MD-6147:
    • Alternator adapter harness.
    • Harness allows new style (CS series) GM alternators to be used in older vehicle applications (SI series).
    • Replaces: GM 12083462, Delco 8077. Use on vehicles with alternator warning light or if vehicle has gauge and warning light.
    • Two color coded wires and plastic plugs already assembled and ready to plug in. See chart below.
    • All GM products—1992-88.
  • MD-6148: extender harness
  • MD-6149:
    • Pigtail socket assembly repair harness voltage.
    • Regulator module all models w/internal regulators.
    • No. 1116411 & 1116408 3 lead 2-18″ gauge, 1-12″ gauge (SXL wire) G.M. ’86/.
  • MD-6150:
    • Alternator with internal regulator.
    • Connector pigtail.
    • Fits 1116408 & 1116411, 1993-86.
    • Replaces: Delco PT135 (GM 12085525), Delco PT137 (GM 12085527), Delco PT165 (GM 12101895)
  • MD-6151:
    • Fuel injector solenoid connector.
    • Fits multi-port injectors GM 1711799, 1993-86.
    • Fits Bosch & Lucas injectors on Chrysler products.
    • Ford products, AMC/Jeep, Datsun/Nissan, Porsche, Toyota, VW, Volvo.
    • Replaces: GM 12085491
  • MD-6152:
    • GM fuel injector solenold connector.
    • Replaces: GM 12085491. Used in most GM and import models with multi-port fuel injection.
    • General motors—1986-93.
  • MD-6153:
    • Ford radiator cooling fan motor socket assembly.
    • Ford motor Co. 1979-89. 2-12″ leads.
  • MD-6154:
    • Heater blower motor pigtail 1993-85.
    • Replaces 12101906.
  • MD-6155:
    • Connector for 4 and 5 terminal mini relays.
    • 5 color coded leads.
  • MD-6156:
    • Connector for electronic flasher.
    • 3 color coded leads.
Certificate:
  • ISO9001:2008
Order Information:
  • Minimum Order: 100PC FOR EACH ITEM
  • Branded Product, Buyer’s Label Offered
  • FOB: TAIWAN
